EPA ECHO
Facilities, violations, cases, emissions
LLM-Ready Permit Risk Detector
ECHO → RBLC → LLM
EPA ECHO 벌크 데이터, RBLC control evidence, state event records, and planned small-domain LLMs turn air-permit assumptions into an auditable pre-permit risk memo.
- ECHO facility, CAA Pipeline, FE&C, Air Emissions analysis
- Planned LLM evidence explanation, citations, and pre-permit checklist
- QLoRA-ready instruction data for 3-4B domain adaptation

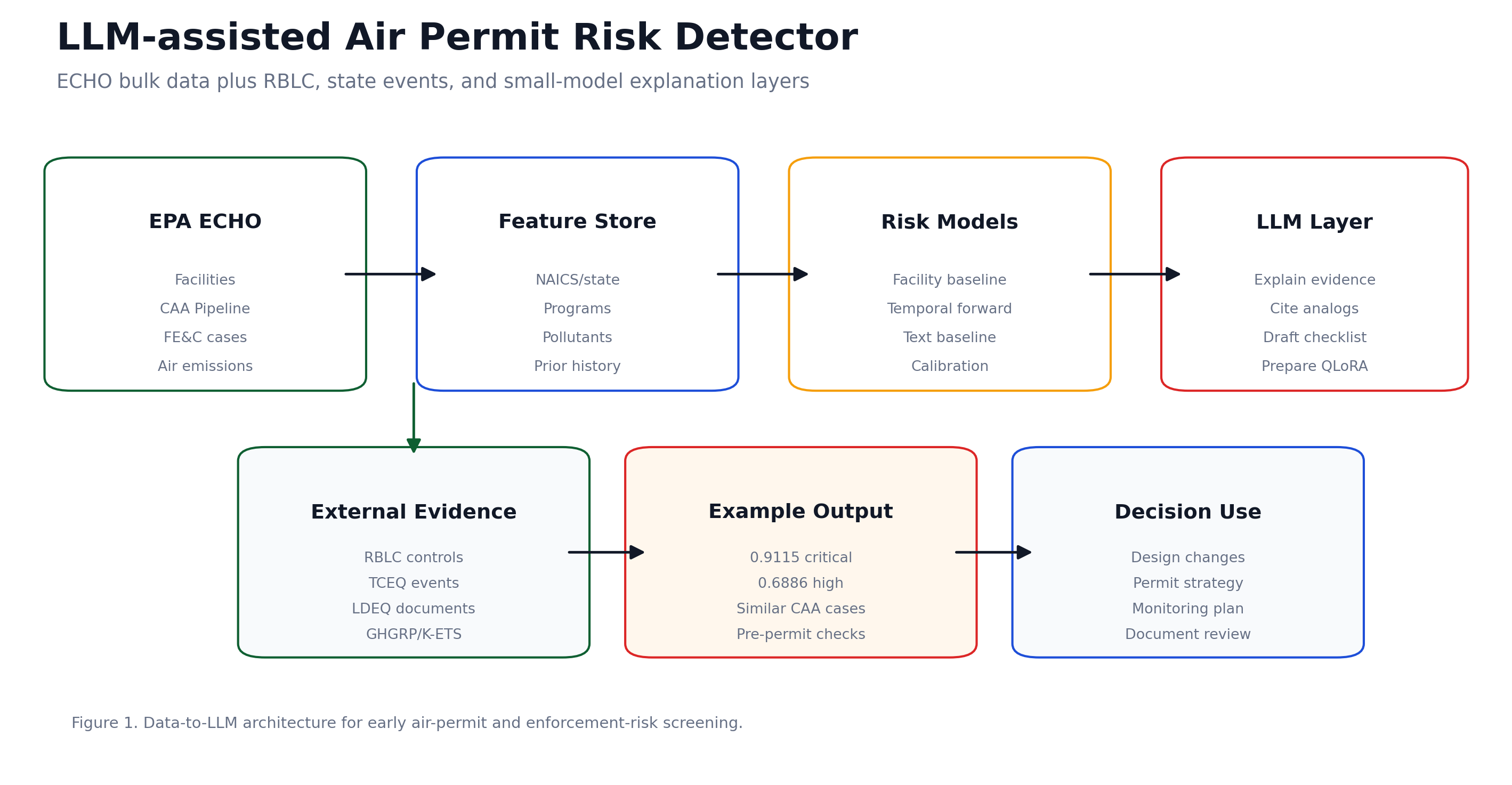

Analysis Workflow
ECHO → RBLC → LLMRBLC Check
Controls, limits, applicability
LLM Reasoning
Explain, cite, summarize, checklist
Permit Risk
0.9115 Critical
1
Ingest ECHO data
2
Check RBLC
3
Score risk
4
Memo draft
ECHO petrochemical/EG candidates
Temporal forward validation
Grouped by REGISTRY_ID split
Petrochemical permit screens

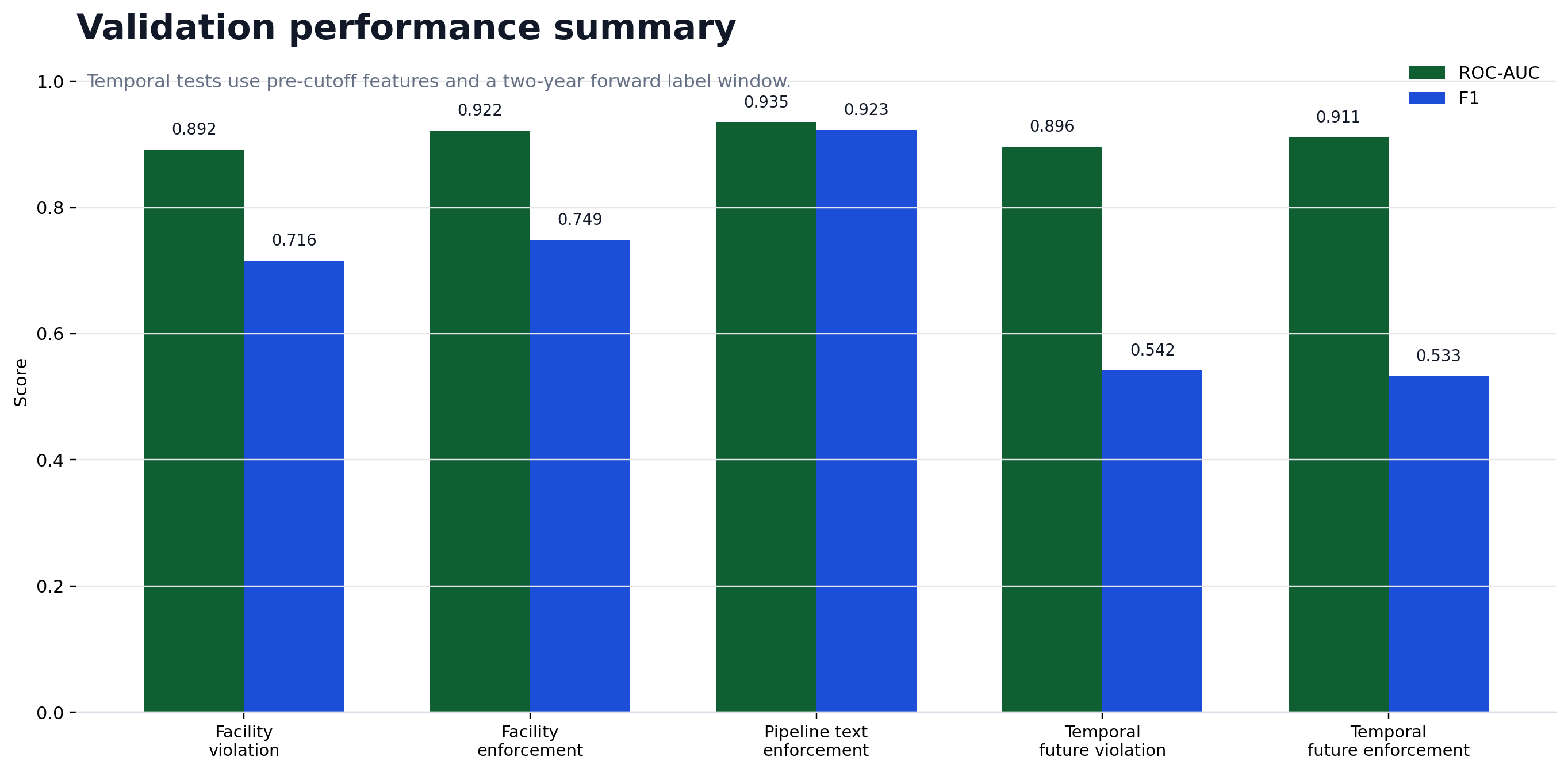

What The Scores Mean
These are validation metrics for the research pipeline, not live permit approval probabilities.
EA means Enforcement Action. ROC-AUC measures how well the model ranks future enforcement-action cases above non-action cases when validation is done forward in time.
F1 balances precision and recall for extracted text labels. The split is grouped by REGISTRY_ID so records from the same facility do not leak between train and test sets.
Project Spec Input
Local rule screen
Example templates
Click inserts project text
Planned search
ECHO / RBLC / state events
LLM layer
Off: no local model call
Graph RAG
Planned: Worker / Vectorize / D1
Scenario Output
0.9115 Critical
EG flare/MSS
Refinery sulfur
Resin VOC/HAP
Hydrogen SMR
DMC solvent
Methanol-to-olefins
Blue ammonia
SAF hydrotreater
Battery solvent
CO2 capture
Chlor-alkali
Backup generators

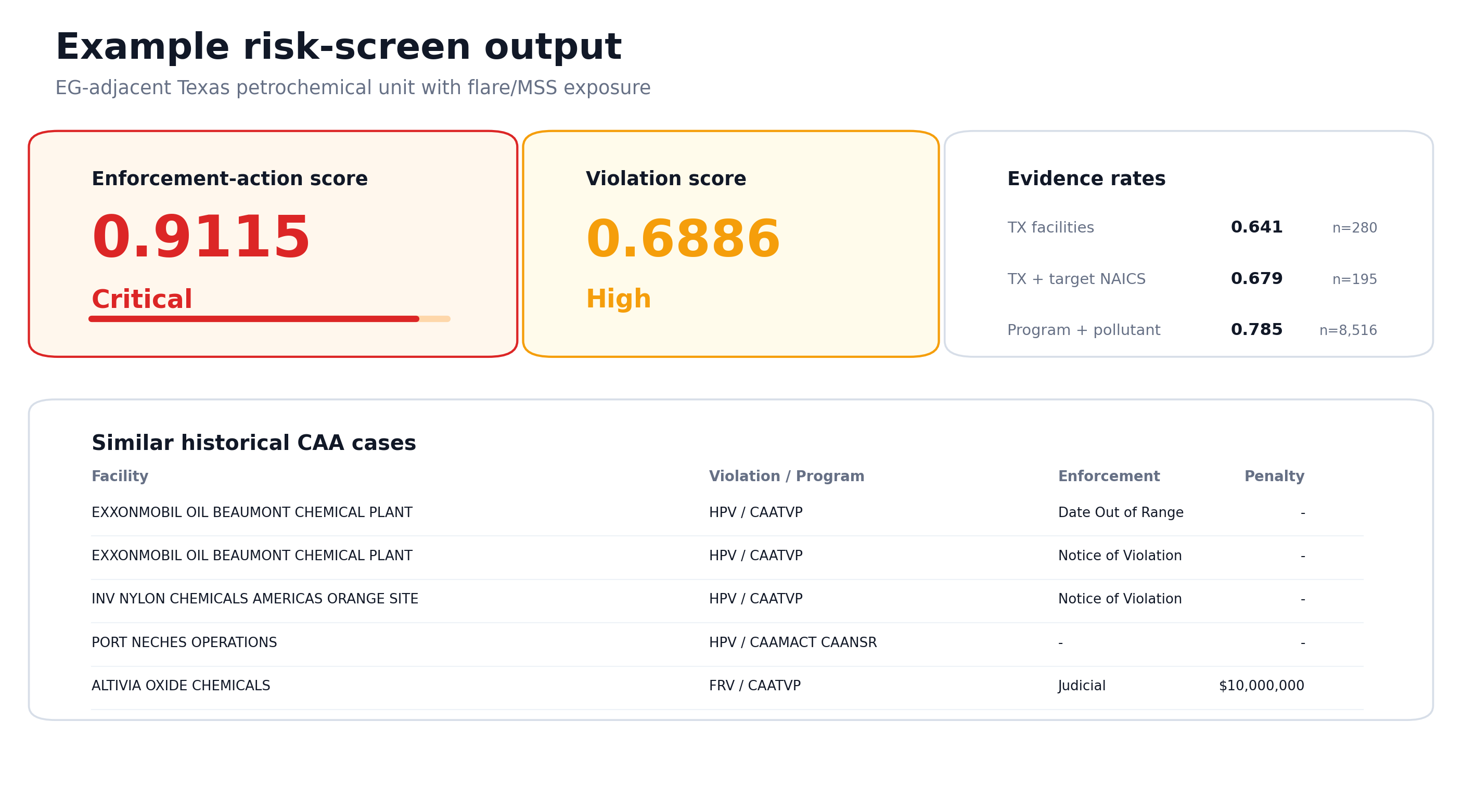

Risk memo draft
Critical enforcement-action risk is driven by Texas petrochemical NAICS exposure, Title V/MACT/PSD/NSR program overlap, HAP/VOC pollutants, and flare/MSS terms. Check RBLC controls and TCEQ event narratives before permit assumptions are fixed.
Triggered evidence
Value
Recommended action
TX + target NAICS enforcement rate
0.6794
Review analog CAA cases
Program + pollutant enforcement rate
0.7855
Confirm MACT/PSD/NSR matrix
State event narrative gap
TCEQ
Search flare and MSS events
Regulation Map
US air permit focusMajor-source operating permit
Consolidates federally enforceable air requirements, monitoring, reporting, and deviation certification for major stationary sources.
Preconstruction review
Screens new projects and modifications before construction. Major projects can require BACT or LAER, modeling, offsets, and public notice.
Hazardous air pollutant controls
Applies source-category standards for HAP emissions, including process controls, LDAR, monitoring, recordkeeping, and work-practice limits.
New source performance standards
Sets technology-based requirements for listed new, modified, or reconstructed source categories such as engines, heaters, tanks, and process units.
Control-technology precedent
EPA clearinghouse for BACT, RACT, and LAER determinations. It helps compare controls and limits used in similar permits.
Compliance and enforcement history
ECHO aggregates facilities, violations, inspections, emissions, and Clean Air Act enforcement actions used for analog risk screening.
Greenhouse-gas reporting layer
Tracks CO2e reporting and measurement, reporting, and verification assumptions. It should be handled separately from CAA criteria-pollutant risk.
Local permit and upset narratives
TCEQ, LDEQ, and other state records can reveal startup, shutdown, maintenance, flaring, and permit-revision patterns that federal data misses.
Paper Figures
Open Word Manuscript

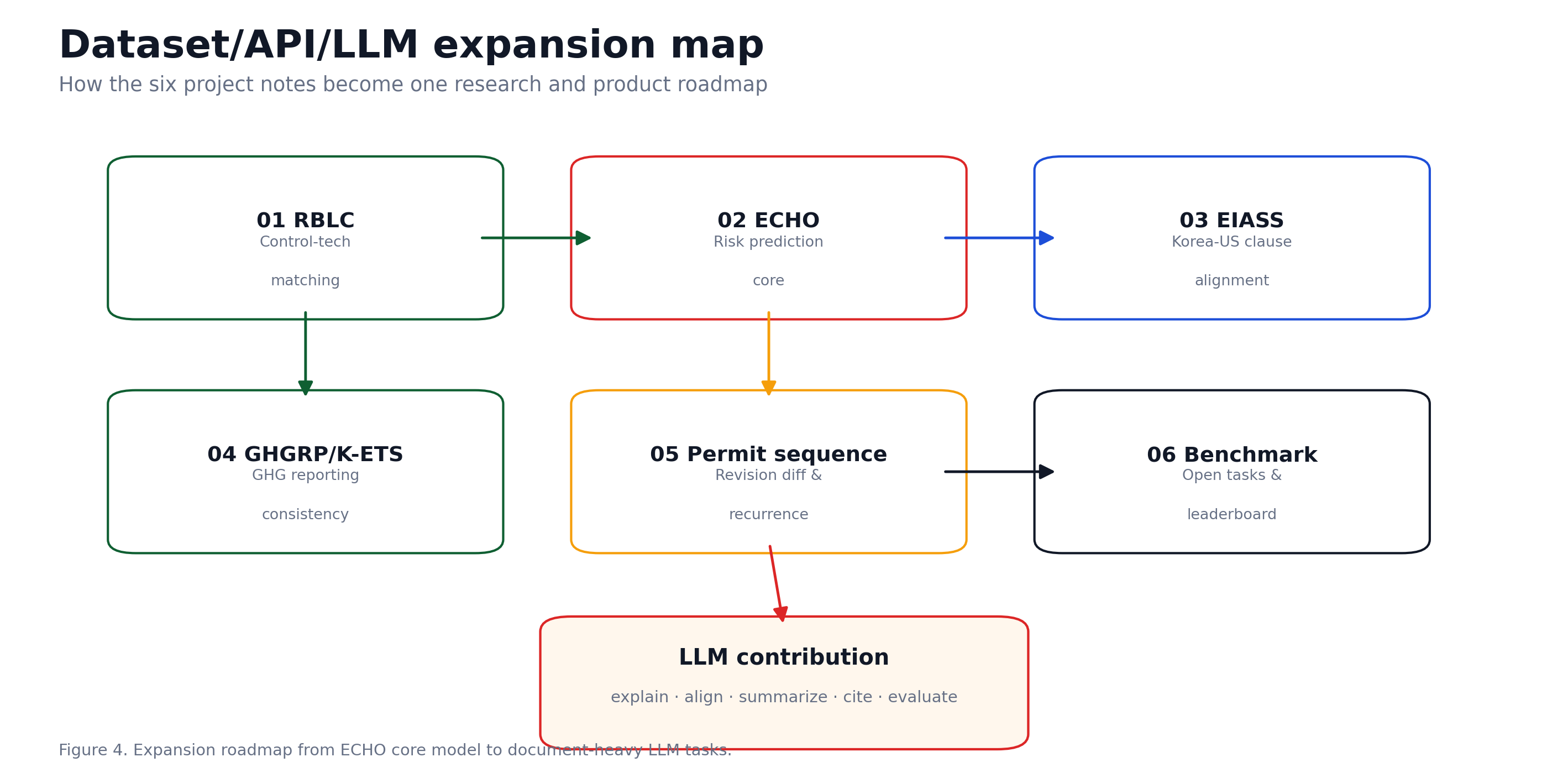

Data & API Expansion
The first model is ECHO-centered. The next research layer connects RBLC controls, EIASS bilingual alignment, GHGRP/K-ETS reporting, and permit revision sequences.
Source
Domain
LLM task
Status
EPA ECHO
Facilities, violations, emissions
Risk explanation
Core
RBLC
Controls, limits, permits
Control recommendation
Next
GHGRP / K-ETS
GHG reporting
MRV consistency
Planned
TCEQ / LDEQ
Events and permit documents
Revision sequence summary
Planned
